How to Integrate RadDateRangePicker in RadGrid control

This article explains how to use RadDateRangePicker in the RadGrid component.

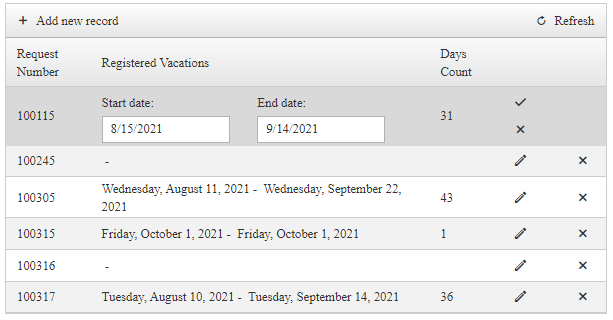

Figure 1:

Sample image

Here is one option to use RadDateRangePicker to show and edit date ranges inside a GridTemplateColumn:

  1. Declare a RadDateRangePicker inside the EditTemplate of a GridTemplateColumn and use its DbRangeSelectionStartDate and DbRangeSelectionEndDate properties for binding to the Grid's DataSource fields (StartDate and EndDate are the data field names used in the sample below):
ASP.NET
<EditItemTemplate>
   <telerik:RadDateRangePicker ID="RadDateRangePicker1" CssClass="RadDateRangePicker" runat="server"
       DbRangeSelectionStartDate='<%# Bind("StartDate") %>'
       DbRangeSelectionEndDate='<%# Bind("EndDate") %>'>
       <StartDatePicker>
           <DateInput Label="Start date: "></DateInput>
       </StartDatePicker>
       <EndDatePicker>
           <DateInput Label="End date: "></DateInput>
       </EndDatePicker>
   </telerik:RadDateRangePicker>
</EditItemTemplate>
  1. In the Item Template you can use Labels to visualize the current DateRange:
ASP.NET
<ItemTemplate>
   <asp:Label runat="server" ID="startDate" Text='<%# Eval("StartDate", "{0:D}") %>'>
   </asp:Label>
   &nbsp;-&nbsp;
   <asp:Label runat="server" ID="endDate" Text='<%# Eval("EndDate", "{0:D}") %>'>
   </asp:Label>
</ItemTemplate>

Example

Check out the complete sample with RadGrid's Manual CRUD Operations below:

ASP.NET(C#)
<telerik:RadGrid RenderMode="Lightweight" ID="RadGrid1" runat="server" AutoGenerateColumns="False" Width="750"
    OnNeedDataSource="RadGrid1_NeedDataSource"
    OnUpdateCommand="RadGrid1_UpdateCommand"
    OnInsertCommand="RadGrid1_InsertCommand"
    OnDeleteCommand="RadGrid1_DeleteCommand">
    <MasterTableView EditMode="InPlace" DataKeyNames="Id" CommandItemDisplay="Top">
        <Columns>
            <telerik:GridBoundColumn UniqueName="Id" ReadOnly="true" Visible="true" HeaderText="Request Number" DataField="Id"></telerik:GridBoundColumn>
            <telerik:GridTemplateColumn HeaderText="Registered Vacations" UniqueName="TemplateColumn">
                <ItemTemplate>
                    <asp:Label runat="server" ID="startDate" Text='<%# Eval("StartDate", "{0:D}") %>'>
                    </asp:Label>&nbsp;-&nbsp;
                    <asp:Label runat="server" ID="endDate" Text='<%# Eval("EndDate", "{0:D}") %>'>
                    </asp:Label>
                </ItemTemplate>
                <EditItemTemplate>
                    <telerik:RadDateRangePicker ID="RadDateRangePicker1" CssClass="RadDateRangePicker" runat="server"
                        DbRangeSelectionStartDate='<%# Bind("StartDate") %>'
                        DbRangeSelectionEndDate='<%# Bind("EndDate") %>'>
                        <StartDatePicker>
                            <DateInput Label="Start date: "></DateInput>
                        </StartDatePicker>
                        <EndDatePicker>
                            <DateInput Label="End date: "></DateInput>
                        </EndDatePicker>
                    </telerik:RadDateRangePicker>
                </EditItemTemplate>
            </telerik:GridTemplateColumn>
            <telerik:GridTemplateColumn UniqueName="DaysOffCount" HeaderText="Days Count" ReadOnly="true">
                <ItemTemplate>
                    <asp:Label runat="server" ID="Label1" Text='<%# (Eval("EndDate") != DBNull.Value && Eval("StartDate") != DBNull.Value) ? ((Convert.ToDateTime(Eval("EndDate")) - Convert.ToDateTime(Eval("StartDate"))).Days+1).ToString() : "" %>'></asp:Label>
                </ItemTemplate>
            </telerik:GridTemplateColumn>
            <telerik:GridEditCommandColumn UniqueName="EditColumn"></telerik:GridEditCommandColumn>
            <telerik:GridClientDeleteColumn UniqueName="DeleteColumn"></telerik:GridClientDeleteColumn>
        </Columns>
    </MasterTableView>
</telerik:RadGrid>
C#
private DataTable DataSource1
{
    get
    {
        if (Session[Request.CurrentExecutionFilePath + "Events"] == null)
        {
            DataTable table = new DataTable("Events");

            table.Columns.Add(new DataColumn { ColumnName = "Id", DataType = typeof(int) });
            table.Columns.Add(new DataColumn { ColumnName = "StartDate", DataType = typeof(System.DateTime) });
            table.Columns.Add(new DataColumn { ColumnName = "EndDate", DataType = typeof(System.DateTime) });

            table.PrimaryKey = new DataColumn[] { table.Columns["Id"] };

            table.Rows.Add(new object[] { 100045, new DateTime(2021, 8, 8), new DateTime(2021, 8, 12) });
            table.Rows.Add(new object[] { 100115, new DateTime(2021, 8, 15), new DateTime(2021, 9, 14) });
            table.Rows.Add(new object[] { 100245, null });
            table.Rows.Add(new object[] { 100305, System.DBNull.Value});
            table.Rows.Add(new object[] { 100315, new DateTime(2021, 10, 1), new DateTime(2021, 10, 1) });

            Session[Request.CurrentExecutionFilePath + "Events"] = table;
        }

        return (DataTable)Session[Request.CurrentExecutionFilePath + "Events"];
    }
}

private void Page_Load(object sender, System.EventArgs e)
{
    if (!Page.IsPostBack)
    {
        Session.Remove(Request.CurrentExecutionFilePath + "Events");
    }
}

//Read
protected void RadGrid1_NeedDataSource(object source, GridNeedDataSourceEventArgs e)
{
    RadGrid1.DataSource = DataSource1;
}

//Update
protected void RadGrid1_UpdateCommand(object source, GridCommandEventArgs e)
{
    RadDateRangePicker picker = (RadDateRangePicker)e.Item.FindControl("RadDateRangePicker1");

    object startDate = picker.DbRangeSelectionStartDate;
    object endDate = picker.DbRangeSelectionEndDate;

    DataSource1.Rows[e.Item.DataSetIndex]["StartDate"] = startDate == null ? DBNull.Value : startDate;
    DataSource1.Rows[e.Item.DataSetIndex]["EndDate"] = endDate == null ? DBNull.Value : endDate;
}

//Insert
protected void RadGrid1_InsertCommand(object sender, GridCommandEventArgs e)
{
    GridEditableItem editedItem = e.Item as GridEditableItem;

    DataRow newRow = DataSource1.NewRow();
    DataRow[] allValues = DataSource1.Select("Id = MAX(Id)");
    if (allValues.Length > 0)
    {
        newRow["Id"] = int.Parse(allValues[0]["Id"].ToString()) + 1;
    }
    else
    {
        newRow["Id"] = 100001; //the table is empty;
    }

    Hashtable newValues = new Hashtable();
    //The GridTableView will fill the values from all editable columns in the hash
    e.Item.OwnerTableView.ExtractValuesFromItem(newValues, editedItem);

    newRow["StartDate"] = newValues["StartDate"] == null ? DBNull.Value : newValues["StartDate"];
    newRow["EndDate"] = newValues["EndDate"] == null ? DBNull.Value : newValues["EndDate"];

    DataSource1.Rows.Add(newRow);
}

//Delete
protected void RadGrid1_DeleteCommand(object sender, GridCommandEventArgs e)
{
    GridDataItem dataItem = e.Item as GridDataItem;
    string ID = dataItem.GetDataKeyValue("Id").ToString();

    if (DataSource1.Rows.Find(ID) != null)
    {
        DataSource1.Rows.Find(ID).Delete();
    }
}

Check out a live example in our Data-Binding demo.
