Scrollviewer - Rad Grid View Vertical scroll bar not visible

[Shipra]

Hi!

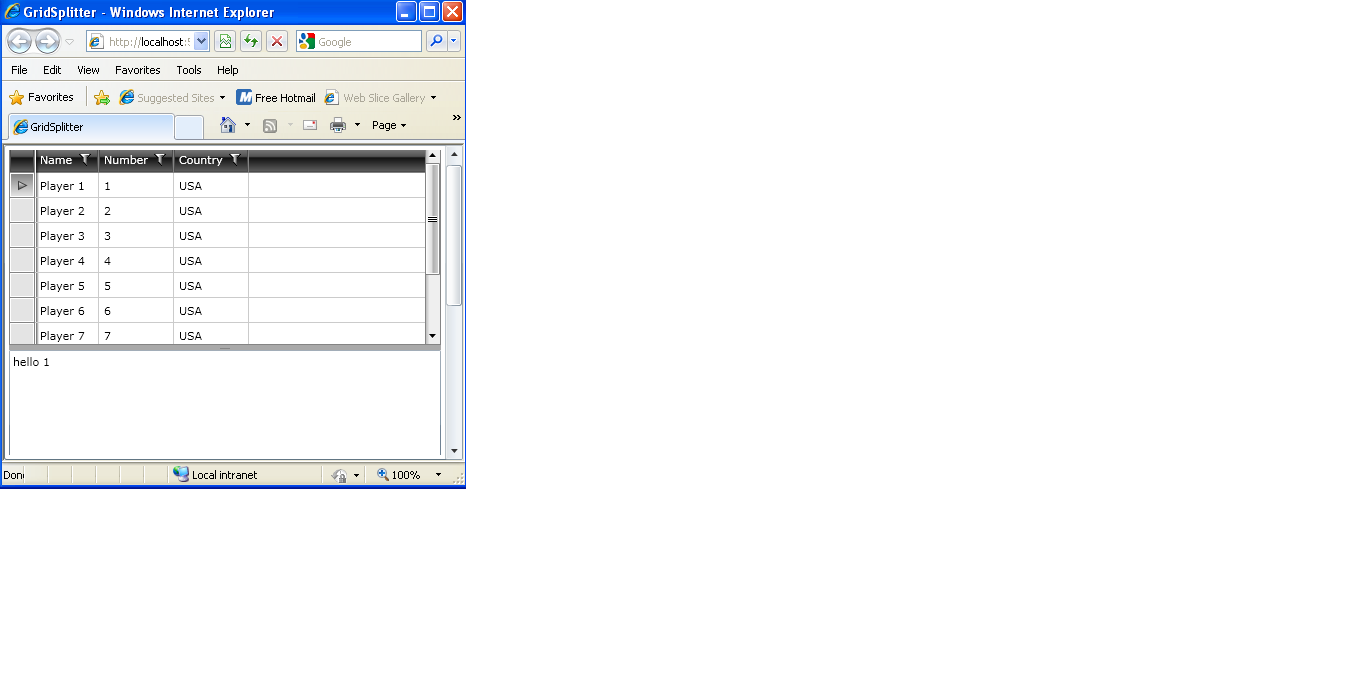

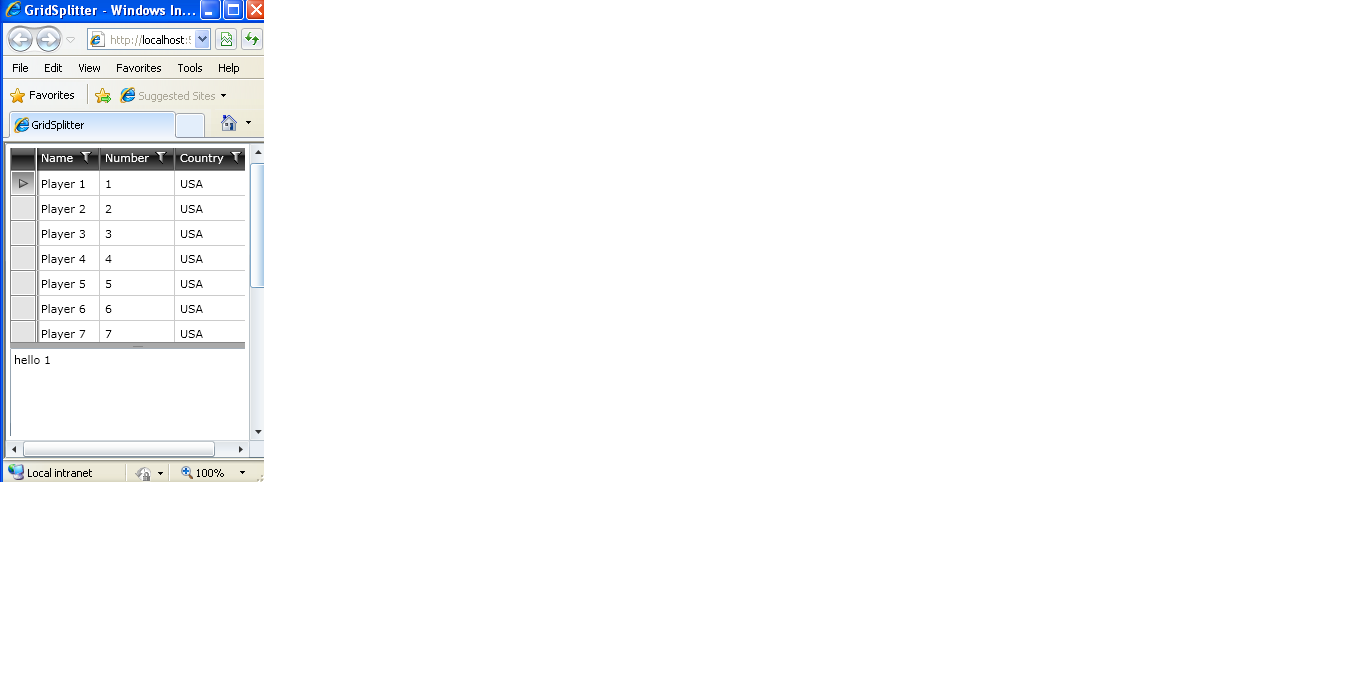

When I enclose the Rad Grid View in the scroll viewer, if you shrink the brower window, the vertical scroll bar gets invisible and have to use horizontal scroll bar to see it. Please see attached jpeg and code example -









<ScrollViewer HorizontalScrollBarVisibility="Auto" VerticalScrollBarVisibility="Auto">
    <Grid x:Name="LayoutRoot" DataContext="{StaticResource MyViewModel}">
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*"/>
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition Height="200" MinHeight="40"/>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>
        <Grid Grid.Row="0">
            <Grid.RowDefinitions>
                <RowDefinition Height="*"/>
                <RowDefinition Height="Auto"/>
            </Grid.RowDefinitions>
            <telerikGridViewControls:RadGridView Grid.Row="0"
                         ItemsSource="{Binding Players}"
                         AutoGenerateColumns="False" ShowGroupPanel="False"
                         >
                <telerikGridViewControls:RadGridView.Columns>
                    <telerikGridViewControls:GridViewDataColumn DataMemberBinding="{Binding Name}"/>
                    <telerikGridViewControls:GridViewDataColumn DataMemberBinding="{Binding Number}"/>
                    <telerikGridViewControls:GridViewDataColumn DataMemberBinding="{Binding Country}"/>
                </telerikGridViewControls:RadGridView.Columns>
            </telerikGridViewControls:RadGridView>
            <TextBox Grid.Row="1" Text="Action View" Visibility="Collapsed"/>
        </Grid>
        <controls:GridSplitter x:Name="HorizontalGrdSplitter" Grid.Row="1" Height="5" HorizontalAlignment="Stretch"
                               VerticalAlignment="Top" Background ="DarkGray"/>
        <Grid Grid.Row="2">
            <Grid.RowDefinitions>
                <RowDefinition Height="200"/>
                <RowDefinition Height="200"/>
            </Grid.RowDefinitions>
            <TextBox Grid.Row="0" Text="hello 1"/>
            <TextBox Grid.Row="1" Text="hello 2"/>
        </Grid>
    </Grid>
</ScrollViewer>

[Milan]

Hi Shipra,

This is the natural behavior of the ScrollViewer control - if there is not enough space to show the contents, in this case RadGridView, a horizontal scrollbar appears.

Regards,
Milan
the Telerik team

[Shipra]

Yes, of course the horizontal scroll bar appears, but we want vertical scroll bar on the grid to be always visible, when the browser window is shrunk. Currently you have to use the horizontal scroll bar on the grid, to scroll to the right to see vertical scroll bar on the grid. I hope it makes sense. Alternatively, can the vertical scroll bar on the grid be moved to left, so it is always visible. Please reply soon.

Thanks
Shipra
