PictureBox on reporting table

[Diego]

Hello telerik team,

Can you help me with this, I need a reporting table to display (and group by name) some images, these images comes from my D.B and they are base64 strings, so I convert them to Image like this: Base64ToImage(myDBstring), this part works fine, but when i run it on my chsarp .net web project, the telerik reporting show me this error:

An error as occurred while proccesing PictureBox 'picture1' Could not find part of the path C:\Myproyect\MyWebSite\System.Drawing.Bitmap.

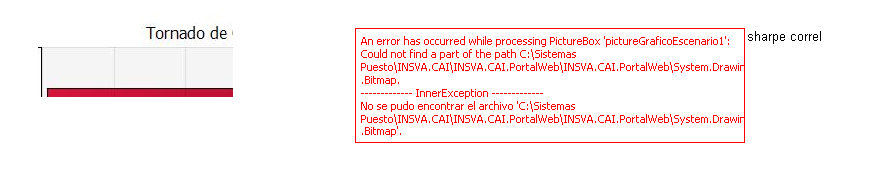

See attached image (left is a single image box and right is the table with the error)

Note 1: I already did this with a single picture box succesfully, but now i need it in a table with two columns, Name and Image.

Note 2: I Dont use paths, i use D.B base64 images and merge them with a Dataset.



[Silviya]

Hello Diego,

Based on the screenshot, the image loads if it's placed in the report directly. However, inside a table, it does not.

My assumption is that the PictureBox inside the table is not data-bound. You may place the PictureBox in a List item and assign your database as a DataSource for the List. Then you will be able to use =Fields.MyPictureField in the PictureBox inside the List.

Best Regards,
Silviya
Progress Telerik

[Diego]

Thanks Silviya, I'm going to apply your approach with a list instead of a table. Best regards

[Silviya]

Hello Diego,

I think you misunderstood my suggestion. I suggested putting a list item inside the table cell that is going to be used for the images. Not to use it instead of the table.

Try this approach and let me know how it goes.

Best Regards,
Silviya
Progress Telerik
