LinkAssemblies errors after upgrade to Xamarin.Forms v3.0

[Cory]

Error       The "LinkAssemblies" task failed unexpectedly.
Mono.Linker.MarkException: Error processing method: 'System.Void Telerik.XamarinForms.Input.RadNumericInputResourceDictionary::InitializeComponent()' in assembly: 'Telerik.XamarinForms.Input.dll' ---> Mono.Cecil.ResolutionException: Failed to resolve System.Func`2<System.String,System.String> Xamarin.Forms.Internals.ResourceLoader::get_ResourceProvider()
   at Mono.Linker.Steps.MarkStep.HandleUnresolvedMethod(MethodReference reference)
   at Mono.Linker.Steps.MarkStep.MarkMethod(MethodReference reference)
   at Mono.Linker.Steps.MarkStep.MarkInstruction(Instruction instruction)
   at Mono.Linker.Steps.MarkStep.MarkMethodBody(MethodBody body)
   at Mono.Linker.Steps.MarkStep.ProcessMethod(MethodDefinition method)
   at Mono.Linker.Steps.MarkStep.ProcessQueue()
   --- End of inner exception stack trace ---
   at Mono.Linker.Steps.MarkStep.ProcessQueue()
   at Mono.Linker.Steps.MarkStep.ProcessPrimaryQueue()
   at Mono.Linker.Steps.MarkStep.Process()
   at Mono.Linker.Steps.MarkStep.Process(LinkContext context)
   at Mono.Linker.Pipeline.Process(LinkContext context)
   at MonoDroid.Tuner.Linker.Process(LinkerOptions options, ILogger logger, LinkContext& context)
   at Xamarin.Android.Tasks.LinkAssemblies.Execute(DirectoryAssemblyResolver res)
   at Xamarin.Android.Tasks.LinkAssemblies.Execute()
   at Microsoft.Build.BackEnd.TaskExecutionHost.Microsoft.Build.BackEnd.ITaskExecutionHost.Execute()
   at Microsoft.Build.BackEnd.TaskBuilder.<ExecuteInstantiatedTask>d__26.MoveNext() App7.Android    C:\Program Files (x86)\Microsoft Visual Studio\2017\Professional\MSBuild\Xamarin\Android\Xamarin.Android.Common.targets 1812



Telerik.UI.for.Xamarin version 2018.1.405.2

Platform: Android



[Dirk]

+1

[Namysław]

Same for me - my iOS app is not building starting from any *3.x* version.
It's building only up to: *2.5.1.527436*.

Telerik version - newest available - 2018.1.405.2.

Error:
C:\Program Files (x86)\Microsoft Visual Studio\2017\Enterprise\MSBuild\Xamarin\iOS\Xamarin.iOS.Common.targets(791,3): error : Can't resolve the reference 'System.Func`2<System.String,System.String> Xamarin.Forms.Internals.ResourceLoader::get_ResourceProvider()', referenced from the method 'System.Void Telerik.XamarinForms.Input.MaskedInputResources::InitializeComponent()' in 'Xamarin.Forms.Core, Version=2.0.0.0, Culture=neutral, PublicKeyToken=null'.

[Yana]

Hello Namysław,

We have received several reports about this issue with the resource loading in Xamarin.Forms 3.0 and we're looking into it with high priority.  You could follow the feedback item in our public portal here: https://feedback.telerik.com/Project/168/Feedback/Details/249296-linkassemblies-build-errors-with-xamarin-forms-3-0

Hopefully we will manage to provide a fix for the upcoming R2 2018 release scheduled for May 16, please give it a try it then.

Regards,
Yana
Progress Telerik

[Namysław]

Hello Yana,
Yes, I'll try to build my app tomorrow, once there will be new release of Telerik for Xamarin.Forms available on nuget, and I'll give feedback of it.

Thanks a lot for quick response!

[Lance | Senior Manager Technical Support]

Hello Cory and Namyslaw,

I can confirm the issue was identified and repaired, the fix will be in the 2018 R2 release Yana mentioned. If you have any additional problem with using Xamarin.Forms version 2.5 (or later), please let us know and share any exception or stack trace you may have.

Thank you for your patience and understanding in this matter.

Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik

[Hari]

1+

[Dirk]

I can confirm the issue wasn´t repaired!

Telerik - 2018.2.516.2
Xamarin - 3.0.0.482510

[Lance | Senior Manager Technical Support]

Hi Dirk,

Thank you for reporting this, we're investigating with high priority. This specific issue appears to be from a different cause, as the fixes for Xamarin.Forms breaking changes in v 3.0+ have been applied, however for a more definitive answer I have alerted the dev team.

I'll respond again once more is known.

Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik

[Namysław]

Same for me at Xamarin.Forms 3.x release, even latest pre release - 3.1.0.469394-pre1:

C:\Program Files (x86)\Microsoft Visual Studio\2017\Enterprise\MSBuild\Xamarin\iOS\Xamarin.iOS.Common.targets(791,3): error : Can't resolve the reference 'System.Func`2<System.String,System.String> Xamarin.Forms.Internals.ResourceLoader::get_ResourceProvider()', referenced from the method 'System.Void Telerik.XamarinForms.Input.RadNumericInputResourceDictionary::InitializeComponent()' in 'Xamarin.Forms.Core, Version=2.0.0.0, Culture=neutral, PublicKeyToken=null'.

Reported also here https://feedback.telerik.com/Project/168/Feedback/Details/249296-linkassemblies-build-errors-with-xamarin-forms-3-0

[Lance | Senior Manager Technical Support]

Hi Namyslaw,

Correct, that's the issue that we're working on now, it's suspected to be related to a breaking change in Xamarin.Forms.

I'll come back and update this thread once the developers identify a solution, but I also recommend that you up-vote and follow the related Feedback Portal item you linked to (click the follow button). The developers who are investigating this will update that item when they've found a solution. If you're following the item, you'll be notified via email with their response.

In the meantime, to workaround this, you'll need to switch the linker to SDK Assemblies only.

Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik

[Chris]

Hi Lance,

the option 'Link SDK assemblies only' is not working for me. The only workaround is to use the 'Don't link' option.

[Namysław]

Same for me - with *SDK Assemblies only* it's not working. Didn't checked with *Don't link*.

[Lance | Senior Manager Technical Support]

Hello,

Thank you all for your patience and understanding. I've spoken with the development team, they're still working hard on this and are aiming to provide support for Xamarin.Forms 3.0 in an upcoming release. I will come back here an update you on the progress (or you can subscribe to the related Feedback Portal item for immediate notification on status changes).

For now, let me explain where we're at and how you can workaround it.

We believe the problem is rooted in the fact that the Xamarin made a breaking change to use .NET Standard 2.0 after v 2.5.1.527436. Telerik UI for Xamarin is built using Xamarin.Forms 2.4, and has backwards compatibility for PCL based projects..

In order for us to completely fix this, we need to update the entire product to use a Xamarin.Forms version later than 2.5.1.527436. We are currently checking to see what the lowest version we can move to that would provide support for XF 3.0, but also introduce the least amount of breaking changes.

Summary:

UI for Xamarin 2018.2.516 does not officially support Xamarin.Forms versions later than v2.5.1.527436

Solutions:

- If you have to use Link All: downgrade to Xamarin.Forms 2.5.1.527436
- If you can use Link SDK Assemblies Only: You can continue using Xamarin.Forms 3.0 (there still might be unexpected instability)


Rest assured that the dev team is working hard on this and it's our highest priority at the moment.

Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik

[Lance | Senior Manager Technical Support]

Hello Everyone,

I wanted to take a moment to update you on the progress of this issue as we're getting closer to a solution.

Here's where we stand now:

- I was able to isolate the problem in a 'vanilla' Xamarin.Forms reproducible (i.e. no Telerik UI for Xamarin)
- I reported this to the Xamarin.Forms developers in a Xamarin.Forms Issue and they've confirmed the bug as a regression
- I have escalated this to the Microsoft program manager responsible for Xamarin.Forms (we're in direct contact and are working to resolve this quickly)


Follow Along

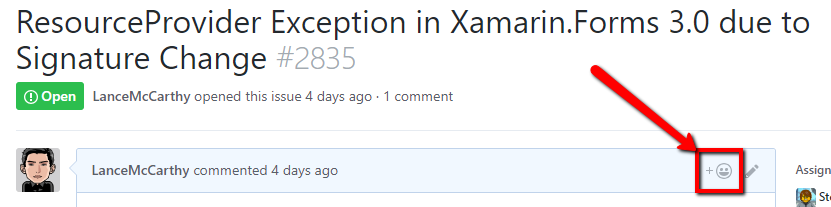

If you'd like to read my report, see the reproducible and follow the discussion, go here: https://github.com/xamarin/Xamarin.Forms/issues/2835

If you want to add your voice to the Issue, and help communicate its impact, you can "Thumbs up" my GitHub Issue. Here's a screenshot of where to find that button:





Next Steps

I will come back here and update you again as soon as I have more news to share. If all go well, a fix could be released in the next release of Xamarin.Forms 3.0, (no Telerik UI for Xamairn update necessary).

Again, I sincerely thank you all for your patience and understanding throughout this process.

Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik

[Lance | Senior Manager Technical Support]

Hello,

I have some good news to share! The Xamarin team worked quickly and was able to fix the underlying problem that was causing this problem.

A couple points I'd like to call out:

1 - See my confirmation post at the bottom of the official Issue thread: ResourceProvider Exception in Xamarin.Forms 3.0 due to Signature Change #2835
2 - The change has been committed and marked Done, go here: Xamarin.Forms Kanban Board for vCurrentTarget (3.0.0).

The Xamarin development team provided me with a test package (v3.1.0.538216) and I can confirm the issue is resolved in that build. Once they've published a release, simply updating your Xamarin.Forms version will also fix the issue in your app (find the Xamarin.Forms package sources list here). It's still possible there may be other issues, but I can confidently say that this one has been resolved.

Although this problem wasn't in Telerik UI for Xamarin, I deeply appreciate your patience and understanding while I worked to investigate, replicate and escalate the problem to Microsoft and the Xamarin team (they were excellent and worked quickly to fix the problem).

If you have any new issues, please open a new Support Ticket (if you have a support license) or open a new forum thread (if you don't have a support license). We do monitor the forums, and reply as much as we can, but this can be limited by available resources at that time. Whereas a support ticket carries a guaranteed response time and is the fastest path to a solution.

Thank you for hanging in there and for choosing UI for Xamarin.

Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik

[Lance | Senior Manager Technical Support]

Hi,

The Xamarin.Forms 3.0 fix is now available in 3.0 sr3 release (3.0.0.550146), available via Nuget or download it directly from the Xamarin.Forms Releases page

Build Test

I have tested this against the May 16th release of Telerik UI for Xamarin (2018.2.516) and confirm it resolves the build issue.

XF Package Update

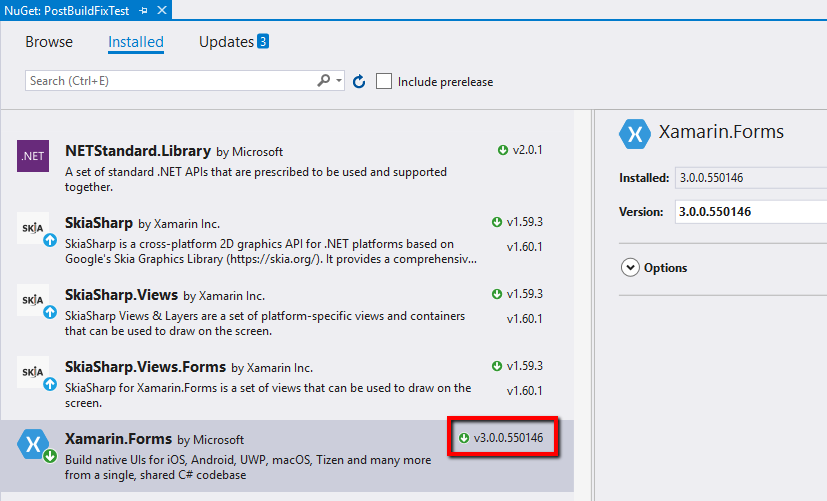

Here's a screenshot of my test app's NuGet Package manager where I call out the SR3 package version number.




Build result

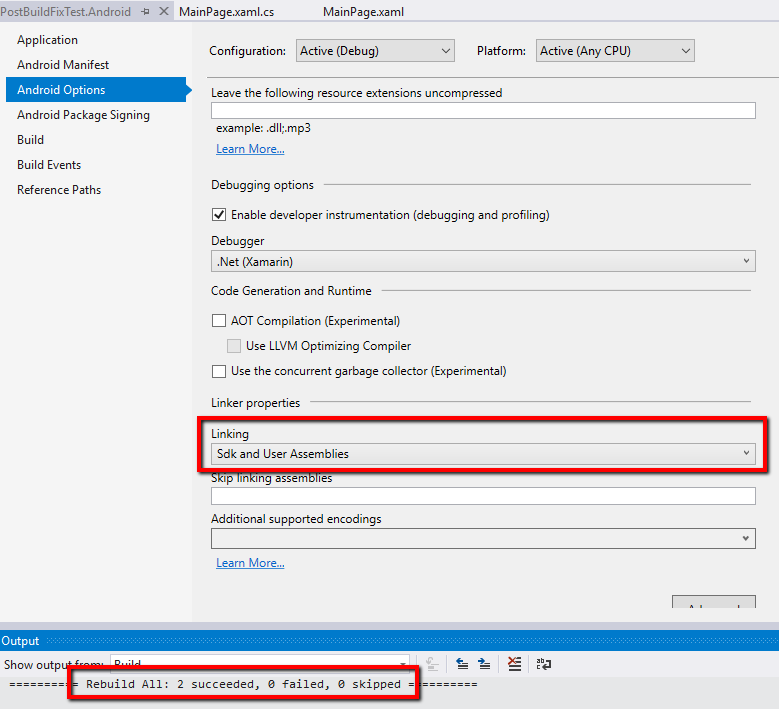

With the Linker set "SDK and User Assemblies", the ResourceDictionaries will compile again.




Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik

[Cory]

Thank you for the update.  Unfortunately, it doesn't work for me.  Got an exception where RadNumericInput is used.  The rest of the controls is OK.

06-06 15:24:25.927 I/MonoDroid( 9499): UNHANDLED EXCEPTION:
06-06 15:24:25.967 I/MonoDroid( 9499): System.Reflection.TargetInvocationException: Exception has been thrown by the target of an invocation. ---> System.TypeInitializationException: The type initializer for 'Telerik.XamarinForms.Input.RadNumericInput' threw an exception. ---> System.MissingMethodException: System.Func`2<string, string> Xamarin.Forms.Internals.ResourceLoader.get_ResourceProvider()
06-06 15:24:25.967 I/MonoDroid( 9499):   at Telerik.XamarinForms.Input.RadNumericInputResourceDictionary..ctor () [0x00006] in <05a9022984a44c32a3a7ba37abe0a7e8>:0
06-06 15:24:25.967 I/MonoDroid( 9499):   at Telerik.XamarinForms.Input.RadNumericInput..cctor () [0x00229] in <05a9022984a44c32a3a7ba37abe0a7e8>:0
06-06 15:24:25.967 I/MonoDroid( 9499):    --- End of inner exception stack trace ---
06-06 15:24:25.967 I/MonoDroid( 9499):   at (wrapper managed-to-native) System.Reflection.MonoCMethod.InternalInvoke(System.Reflection.MonoCMethod,object,object[],System.Exception&)
06-06 15:24:25.967 I/MonoDroid( 9499):   at System.Reflection.MonoCMethod.InternalInvoke (System.Object obj, System.Object[] parameters) [0x00002] in <f32579baafc1404fa37ba3ec1abdc0bd>:0
06-06 15:24:25.967 I/MonoDroid( 9499):    --- End of inner exception stack trace ---
06-06 15:24:25.967 I/MonoDroid( 9499):   at System.Reflection.MonoCMethod.InternalInvoke (System.Object obj, System.Object[] parameters) [0x00017] in <f32579baafc1404fa37ba3ec1abdc0bd>:0
06-06 15:24:25.967 I/MonoDroid( 9499):   at System.RuntimeType.CreateInstanceMono (System.Boolean nonPublic) [0x000a8] in <f32579baafc1404fa37ba3ec1abdc0bd>:0
06-06 15:24:25.967 I/MonoDroid( 9499):   at System.RuntimeType.CreateInstanceSlow (System.Boolean publicOnly, System.Boolean skipCheckThis, System.Boolean fillCache, System.Threading.StackCrawlMark& stackMark) [0x00009] in <f32579baafc1404fa37ba3ec1abdc0bd>:0
06-06 15:24:25.967 I/MonoDroid( 9499):   at System.RuntimeType.CreateInstanceDefaultCtor (System.Boolean publicOnly, System.Boolean skipCheckThis, System.Boolean fillCache, System.Threading.StackCrawlMark& stackMark) [0x00027] in <f32579baafc1404fa37ba3ec1abdc0bd>:0
06-06 15:24:25.967 I/MonoDroid( 9499):   at System.Activator.CreateInstance (System.Type type, System.Boolean nonPublic) [0x0002c] in <f32579baafc1404fa37ba3ec1abdc0bd>:0
06-06 15:24:25.967 I/MonoDroid( 9499):   at System.Activator.CreateInstance (System.Type type) [0x00000] in <f32579baafc1404fa37ba3ec1abdc0bd>:0
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Xaml.CreateValuesVisitor.Visit (Xamarin.Forms.Xaml.ElementNode node, Xamarin.Forms.Xaml.INode parentNode) [0x00256] in D:\a\1\s\Xamarin.Forms.Xaml\CreateValuesVisitor.cs:95
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Xaml.ElementNode.Accept (Xamarin.Forms.Xaml.IXamlNodeVisitor visitor, Xamarin.Forms.Xaml.INode parentNode) [0x000ac] in D:\a\1\s\Xamarin.Forms.Xaml\XamlNode.cs:149
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Xaml.ElementNode.Accept (Xamarin.Forms.Xaml.IXamlNodeVisitor visitor, Xamarin.Forms.Xaml.INode parentNode) [0x00079] in D:\a\1\s\Xamarin.Forms.Xaml\XamlNode.cs:145
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Xaml.ElementNode.Accept (Xamarin.Forms.Xaml.IXamlNodeVisitor visitor, Xamarin.Forms.Xaml.INode parentNode) [0x00079] in D:\a\1\s\Xamarin.Forms.Xaml\XamlNode.cs:145
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Xaml.ElementNode.Accept (Xamarin.Forms.Xaml.IXamlNodeVisitor visitor, Xamarin.Forms.Xaml.INode parentNode) [0x00079] in D:\a\1\s\Xamarin.Forms.Xaml\XamlNode.cs:145
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Xaml.RootNode.Accept (Xamarin.Forms.Xaml.IXamlNodeVisitor visitor, Xamarin.Forms.Xaml.INode parentNode) [0x00079] in D:\a\1\s\Xamarin.Forms.Xaml\XamlNode.cs:202
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Xaml.XamlLoader.Visit (Xamarin.Forms.Xaml.RootNode rootnode, Xamarin.Forms.Xaml.HydrationContext visitorContext) [0x00054] in D:\a\1\s\Xamarin.Forms.Xaml\XamlLoader.cs:140
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Xaml.XamlLoader.Load (System.Object view, System.String xaml) [0x00058] in D:\a\1\s\Xamarin.Forms.Xaml\XamlLoader.cs:89
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Xaml.XamlLoader.Load (System.Object view, System.Type callingType) [0x00026] in D:\a\1\s\Xamarin.Forms.Xaml\XamlLoader.cs:67
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Xaml.Extensions.LoadFromXaml[TXaml] (TXaml view, System.Type callingType) [0x00000] in D:\a\1\s\Xamarin.Forms.Xaml\ViewExtensions.cs:36
06-06 15:24:25.967 I/MonoDroid( 9499):   at Zenith.Clients.UI.ParameterNumericCell.InitializeComponent () [0x00001] in d:\workspace.zenith\Zenith\Zenith\Zenith.Clients.UI\obj\Debug
etstandard2.0\Cells\ParameterNumericCell.xaml.g.cs:24
06-06 15:24:25.967 I/MonoDroid( 9499):   at Zenith.Clients.UI.ParameterNumericCell..ctor () [0x00008] in d:\workspace.zenith\Zenith\Zenith\Zenith.Clients.UI\Cells\ParameterNumericCell.xaml.cs:11
06-06 15:24:25.967 I/MonoDroid( 9499):   at Zenith.Clients.UI.Pages.Application.ApplicationPage+<InitializeComponent>_anonXamlCDataTemplate_0.LoadDataTemplate () <0x94c72bf0 + 0x0005b> in <3e4af3a5a08543ba8044c36d78ddd1b9>:0
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.ElementTemplate.CreateContent () [0x00026] in D:\a\1\s\Xamarin.Forms.Core\ElementTemplate.cs:82
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Internals.DataTemplateExtensions.CreateContent (Xamarin.Forms.DataTemplate self, System.Object item, Xamarin.Forms.BindableObject container) [0x00000] in D:\a\1\s\Xamarin.Forms.Core\DataTemplateExtensions.cs:19
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Internals.TemplatedItemsList`2[TView,TItem].ActivateContent (System.Int32 index, System.Object item) [0x00000] in D:\a\1\s\Xamarin.Forms.Core\TemplatedItemsList.cs:534
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Internals.TemplatedItemsList`2[TView,TItem].CreateContent (System.Int32 index, System.Object item, System.Boolean insert) [0x00000] in D:\a\1\s\Xamarin.Forms.Core\TemplatedItemsList.cs:543
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Internals.TemplatedItemsList`2[TView,TItem].GetOrCreateContent (System.Int32 index, System.Object item) [0x00023] in D:\a\1\s\Xamarin.Forms.Core\TemplatedItemsList.cs:602
06-06 15:24:25.967 I/MonoDroid( 9499):   at Xamarin.Forms.Internals.TemplatedItemsList`2[TView,TItem].get_Item (System.Int32 index) [0x00000] in D:\a\1\s\Xamarin.Forms.Core\TemplatedItemsList.cs:337
06-06 15:24:25.977 I/MonoDroid( 9499):   at Xamarin.Forms.Platform.Android.ListViewAdapter.GetCellsFromPosition (System.Int32 position, System.Int32 take) [0x0003b] in D:\a\1\s\Xamarin.Forms.Platform.Android\Renderers\ListViewAdapter.cs:516
06-06 15:24:25.977 I/MonoDroid( 9499):   at Xamarin.Forms.Platform.Android.ListViewAdapter.GetCellForPosition (System.Int32 position) [0x00000] in D:\a\1\s\Xamarin.Forms.Platform.Android\Renderers\ListViewAdapter.cs:437
06-06 15:24:25.977 I/MonoDroid( 9499):   at Xamarin.Forms.Platform.Android.ListViewAdapter.GetView (System.Int32 position, Android.Views.View convertView, Android.Views.ViewGroup parent) [0x0006d] in D:\a\1\s\Xamarin.Forms.Platform.Android\Renderers\ListViewAdapter.cs:215
06-06 15:24:25.977 I/MonoDroid( 9499):   at Android.Widget.BaseAdapter.n_GetView_ILandroid_view_View_Landroid_view_ViewGroup_ (System.IntPtr jnienv, System.IntPtr native__this, System.Int32 position, System.IntPtr native_convertView, System.IntPtr native_parent) [0x00018] in <263adecfa58f4c449f1ff56156d886fd>:0
06-06 15:24:25.977 I/MonoDroid( 9499):   at (wrapper dynamic-method) System.Object.6ce4f953-7bb6-42c6-9f0c-68dbc7196ad2(intptr,intptr,int,intptr,intptr)
06-06 15:24:26.007 W/art     ( 9499): JNI RegisterNativeMethods: attempt to register 0 native methods for android.runtime.JavaProxyThrowable
06-06 15:24:26.007 D/Mono    ( 9499): DllImport searching in: '__Internal' ('(null)').
06-06 15:24:26.007 D/Mono    ( 9499): Searching for 'java_interop_jnienv_throw'.
06-06 15:24:26.007 D/Mono    ( 9499): Probing 'java_interop_jnienv_throw'.
06-06 15:24:26.007 D/Mono    ( 9499): Found as 'java_interop_jnienv_throw'.



[Lance | Senior Manager Technical Support]

Hello Cory,

I've just finished tested RadNumericInput and am not seeing the System.MissingMethodException: System.Func`2<string, string> error.

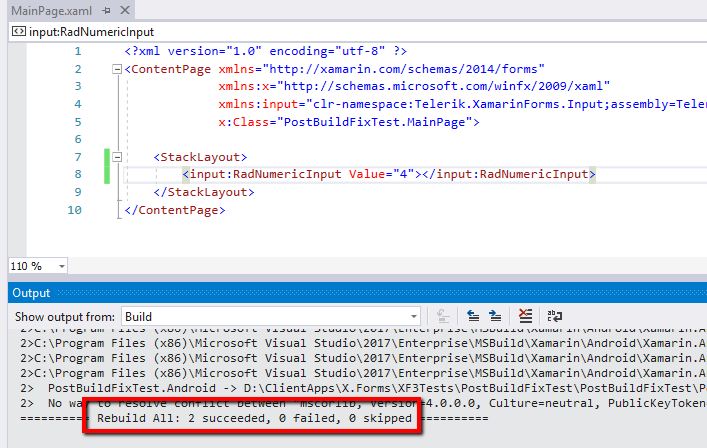

Here's the result:



Two Things

1 - Can you confirm you're using UI for Xamarin 2018.2.516? (there were some ResourceDictionary fixes in that release that you should also compile with).
2 - It is possible that the project wasn't fully clean upon building after the Xamarin.Forms update.

Here's what you can do to ensure a clean build using only the lastest packages and assemblies:

1 - Close Visual Studio and navigate to the project in File Explorer (or Finder if you're on Mac)
2 - Go though every project and permanently delete the bin and obj folder from each project
3 - If your solution root has a Packages folder, delete that also
4 - Reopen the solution in Visual Studio
5 - Right click and "rebuild" each project separately, starting with the class library

If it doesn't work, open a support ticket using this link and include the all the code you're using for the RadNumericInput so I can replicate it. I'll start investigating as soon as I see your ticket come in.

Regards,
Lance | Tech Support Engineer, Sr.
Progress Telerik

[Cory]

Thanks, Lance.  That did the trick.
