Is a custom color picker possible?

[Psyduck]

Hello.

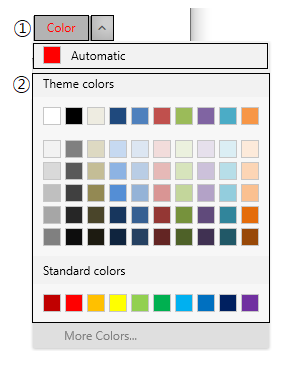

First of all, please check the image.

My question is this.

1. The textbox in the splitbutton has no function. Can the ColorPicker be displayed in the same way as the arrow function?

    Arrow button down when clicking text box.





2. Can I change the location of Themes colors and Standard Colors?

     MainPalette and StandardPalette properties exist, but cannot be reversed.







Is there a solution?

Thanks.

[Dilyan Traykov]

Hello,

Thank you for the provided image.

To achieve the desired result, you can use the ColorSelectorStyle and SplitButtonStyle properties of the RadColorPicker control.

In the style for the RadColorSelector, you can change the values of the Grid.Row property of the elements displaying the MainPalette and StandardPalette to achieve the desired order.

As for enabling the click of the button part of the RadSplitButton, you can create an attach behavior in which you can handle the Checked and Unchecked events. For the purpose, you will also need to set its IsToggle property to true.

For your convenience, I've prepared a small sample project which demonstrates both modifications. Please have a look and let me know if this provides the desired result.

Regards,
Dilyan Traykov
Progress Telerik

[Psyduck]

Hi.



Thanks for helping me.

This works perfectly and is what I want.



I have a question.

If I want to change the palette position, do I have to change it only in BaseStyle?

It seems like overwriting an existing Style and it looks complicated, so I just ask.



And I posted a post, but you don't need to answer the behavior part of the split button.

Thank you.

[Dilyan Traykov]

Hi KIM,

Actually, you can also achieve the same result in code behind by adding an extra handler to the custom behavior I created:

        private static void Button_Loaded(object sender, RoutedEventArgs e)
        {
            var splitButton = sender as RadSplitButton;
            var colorSelector = splitButton.DropDownContent as RadColorSelector;
            colorSelector.Loaded += (s, a) =>
            {
                var rootElement = colorSelector.ChildrenOfType<Grid>().First(x => x.Name == "RootElement");
                Grid.SetRow(rootElement.Children[1], 4);
                Grid.SetRow(rootElement.Children[2], 5);
                Grid.SetRow(rootElement.Children[3], 6);
                Grid.SetRow(rootElement.Children[4], 1);
                Grid.SetRow(rootElement.Children[5], 2);
                Grid.SetRow(rootElement.Children[6], 3);
            };
        }

For your convenience, I'm also attaching the updated project with these modifications.

Please have a look and let me know if this is what you had in mind.

Regards,
Dilyan Traykov
Progress Telerik

[Psyduck]

Hello.

Thanks, it works well. That's what I want.

Does this really have no effect on performance? between xaml and loaded?

[Dilyan Traykov]

Hello KIM,

I'm happy to hear that you managed to achieve the desired result.

I'm not absolutely certain, but I believe using the code-behind approach would be a bit quicker than overriding the default template. To be completely sure, you can profile the application with both approaches and decide for yourself. Nonetheless, I do believe the difference in performance is negligible.

Regards,
Dilyan Traykov
Progress Telerik
