Hello,

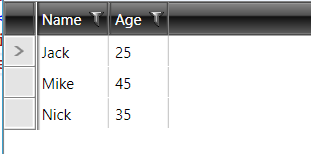

To remove the background of the selected state of the GridViewRow element for the Office_Black theme (my guess is that this theme is used on your end), extract its default ControlTemplate with x:Key="GridViewRowTemplate"
More information on how to extract our default ControlTemplates can be found at the following link:
Editing Control Templates - Telerik UI for WPF
After extracting the ControlTemplate, locate the Border with x:Name="Background_Selected" and change the BorderBrush to Transparent. Additionally, change the Background and BorderBrush properties of its inner Border element to Transparent as well (or a color of your choice). Finally, create a new global Style for the GridViewRow element and set the modified ControlTemplate to its Template property.

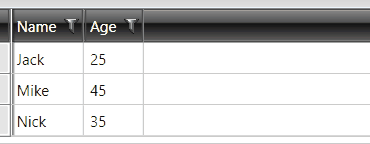

The following code snippet shows this suggestion's implementation (the used approach is for the NoXaml assemblies and implicit styles theming approach, as it is easier to modify the default styles and templates with this configuration):
<Application.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="/Telerik.Windows.Themes.Office_Black;component/Themes/System.Windows.xaml"/>
<ResourceDictionary Source="/Telerik.Windows.Themes.Office_Black;component/Themes/Telerik.Windows.Controls.xaml"/>
<ResourceDictionary Source="/Telerik.Windows.Themes.Office_Black;component/Themes/Telerik.Windows.Controls.Input.xaml"/>
<ResourceDictionary Source="/Telerik.Windows.Themes.Office_Black;component/Themes/Telerik.Windows.Controls.GridView.xaml"/>
</ResourceDictionary.MergedDictionaries>
<Style TargetType="telerik:GridViewRow" BasedOn="{StaticResource GridViewRowStyle}">
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="telerik:GridViewRow">
<Border BorderThickness="{TemplateBinding BorderThickness}" BorderBrush="{TemplateBinding BorderBrush}">
<VisualStateManager.VisualStateGroups>
<VisualStateGroup x:Name="FocusStates">
<VisualState x:Name="Unfocused"/>
<VisualState x:Name="Focused">
<Storyboard>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="NavigatorIndicator" Storyboard.TargetProperty="(UIElement.Visibility)">
<DiscreteObjectKeyFrame KeyTime="0">
<DiscreteObjectKeyFrame.Value>
<Visibility>Visible</Visibility>
</DiscreteObjectKeyFrame.Value>
</DiscreteObjectKeyFrame>
</ObjectAnimationUsingKeyFrames>
</Storyboard>
</VisualState>
</VisualStateGroup>
<VisualStateGroup x:Name="SelectionStates">
<VisualState x:Name="Unselected"/>
<VisualState x:Name="SelectedUnfocused">
<Storyboard>
<ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetName="Background_Over" Storyboard.TargetProperty="(UIElement.Visibility)">
<DiscreteObjectKeyFrame KeyTime="0">
<DiscreteObjectKeyFrame.Value>
<Visibility>Visible</Visibility>
</DiscreteObjectKeyFrame.Value>
</DiscreteObjectKeyFrame>
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="Background_Over" Storyboard.TargetProperty="BorderBrush">
<DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource GridView_ItemOuterBorder_SelectedUnfocused}"/>
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="BackgroundInner_Over" Storyboard.TargetProperty="Background">
<DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource GridView_ItemBackground_SelectedUnfocused}"/>
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="BackgroundInner_Over" Storyboard.TargetProperty="BorderBrush">
<DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource GridView_ItemInnerBorder_SelectedUnfocused}"/>
</ObjectAnimationUsingKeyFrames>
</Storyboard>
</VisualState>
</VisualStateGroup>
<VisualStateGroup x:Name="CommonStates">
<VisualState x:Name="Normal"/>
<VisualState x:Name="MouseOver">
<Storyboard>
<ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetName="Background_Over" Storyboard.TargetProperty="(UIElement.Visibility)">
<DiscreteObjectKeyFrame KeyTime="0">
<DiscreteObjectKeyFrame.Value>
<Visibility>Visible</Visibility>
</DiscreteObjectKeyFrame.Value>
</DiscreteObjectKeyFrame>
</ObjectAnimationUsingKeyFrames>
</Storyboard>
</VisualState>
<VisualState x:Name="Selected">
<Storyboard>
<ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetName="Background_Selected" Storyboard.TargetProperty="(UIElement.Visibility)">
<DiscreteObjectKeyFrame KeyTime="0">
<DiscreteObjectKeyFrame.Value>
<Visibility>Visible</Visibility>
</DiscreteObjectKeyFrame.Value>
</DiscreteObjectKeyFrame>
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="NavigatorIndicatorBackground" Storyboard.TargetProperty="Background">
<DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource GridView_RowIndicatorCellBackground_Selected}"/>
</ObjectAnimationUsingKeyFrames>
</Storyboard>
</VisualState>
</VisualStateGroup>
<VisualStateGroup x:Name="ValueStates">
<VisualState x:Name="RowValid"/>
<VisualState x:Name="RowInvalid">
<Storyboard>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="Background_Invalid" Storyboard.TargetProperty="(UIElement.Visibility)">
<DiscreteObjectKeyFrame KeyTime="0">
<DiscreteObjectKeyFrame.Value>
<Visibility>Visible</Visibility>
</DiscreteObjectKeyFrame.Value>
</DiscreteObjectKeyFrame>
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="ErrorIndicator" Storyboard.TargetProperty="(UIElement.Visibility)">
<DiscreteObjectKeyFrame KeyTime="0">
<DiscreteObjectKeyFrame.Value>
<Visibility>Visible</Visibility>
</DiscreteObjectKeyFrame.Value>
</DiscreteObjectKeyFrame>
</ObjectAnimationUsingKeyFrames>
</Storyboard>
</VisualState>
</VisualStateGroup>
<VisualStateGroup x:Name="EditStates">
<VisualState x:Name="ReadOnlyMode"/>
<VisualState x:Name="EditMode">
<Storyboard>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="EditIndicator" Storyboard.TargetProperty="Visibility">
<DiscreteObjectKeyFrame KeyTime="0">
<DiscreteObjectKeyFrame.Value>
<Visibility>Visible</Visibility>
</DiscreteObjectKeyFrame.Value>
</DiscreteObjectKeyFrame>
</ObjectAnimationUsingKeyFrames>
</Storyboard>
</VisualState>
<VisualState x:Name="InvalidEditMode">
<Storyboard>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="Background_Invalid" Storyboard.TargetProperty="(UIElement.Visibility)">
<DiscreteObjectKeyFrame KeyTime="0">
<DiscreteObjectKeyFrame.Value>
<Visibility>Visible</Visibility>
</DiscreteObjectKeyFrame.Value>
</DiscreteObjectKeyFrame>
</ObjectAnimationUsingKeyFrames>
<ObjectAnimationUsingKeyFrames Storyboard.TargetName="InvalidEditableIndicator" Storyboard.TargetProperty="Visibility">
<DiscreteObjectKeyFrame KeyTime="0">
<DiscreteObjectKeyFrame.Value>
<Visibility>Visible</Visibility>
</DiscreteObjectKeyFrame.Value>
</DiscreteObjectKeyFrame>
</ObjectAnimationUsingKeyFrames>
</Storyboard>
</VisualState>
</VisualStateGroup>
</VisualStateManager.VisualStateGroups>
<telerik:SelectiveScrollingGrid x:Name="grid">
<Grid.ColumnDefinitions>
<ColumnDefinition Width="Auto"/>
<ColumnDefinition Width="Auto"/>
<ColumnDefinition Width="Auto"/>
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="*"/>
<RowDefinition Height="Auto"/>
<RowDefinition Height="Auto"/>
<RowDefinition Height="Auto"/>
</Grid.RowDefinitions>
<Border x:Name="SelectionBackground"
Grid.Column="2"
Grid.ColumnSpan="2"
Background="{TemplateBinding Background}"
Margin="{TemplateBinding Margin}"
VerticalAlignment="{TemplateBinding VerticalContentAlignment}"
Padding="{TemplateBinding Padding}"
telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True"/>
<Border x:Name="Background_Over"
Margin="1 1 1 2"
BorderThickness="1"
CornerRadius="1"
BorderBrush="{StaticResource GridView_ItemOuterBorder_Over}"
Grid.Column="2"
Grid.ColumnSpan="2"
Visibility="Collapsed"
telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True">
<Border x:Name="BackgroundInner_Over" BorderThickness="1" BorderBrush="{StaticResource GridView_ItemInnerBorder_Over}" Background="{TemplateBinding MouseOverBackground}"/>
</Border>
<Border x:Name="Background_Selected"
Margin="1 1 1 2"
BorderThickness="1"
CornerRadius="1"
BorderBrush="Transparent"
Grid.Column="2"
Grid.ColumnSpan="2"
Visibility="Collapsed"
telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True">
<Border BorderThickness="1" BorderBrush="Transparent" Background="Transparent"/>
</Border>
<Border x:Name="Background_Invalid"
Margin="1 1 1 2"
BorderThickness="1"
CornerRadius="1"
BorderBrush="{StaticResource GridView_ItemOuterBorder_Invalid}"
Grid.Column="2"
Grid.ColumnSpan="2"
Visibility="Collapsed"
telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True">
<Border BorderThickness="1" BorderBrush="{StaticResource GridView_ItemInnerBorder_Invalid}" Background="{StaticResource GridView_ItemBackground_Invalid}"/>
</Border>
<telerik:GridViewToggleButton
Grid.Column="2"
x:Name="PART_HierarchyExpandButton"
Width="25"
telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"
Opacity="{Binding IsExpandable, RelativeSource={RelativeSource TemplatedParent}, Converter={StaticResource BooleanToOpacityConverter}}"
IsHitTestVisible="{Binding IsExpandable, RelativeSource={RelativeSource TemplatedParent}}"
Visibility="{Binding HasHierarchy, RelativeSource={RelativeSource TemplatedParent}, Converter={StaticResource BooleanToVisibilityConverter}}"
IsChecked="{Binding IsExpanded, Mode=TwoWay, RelativeSource={RelativeSource TemplatedParent}}"
IsTabStop="{TemplateBinding IsTabStop}"/>
<Border Grid.Column="2" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="{Binding HasHierarchy, RelativeSource={RelativeSource TemplatedParent}, Converter={StaticResource BooleanToVisibilityConverter}}"/>
<telerik:DataCellsPresenter Grid.Column="3" x:Name="PART_DataCellsPresenter"/>
<Border x:Name="PART_RowBorder"
BorderBrush="{TemplateBinding HorizontalGridLinesBrush}"
BorderThickness="{Binding HorizontalGridLinesWidth, RelativeSource={RelativeSource TemplatedParent}, Converter={StaticResource GridLineWidthToThicknessConverter}, ConverterParameter=Bottom}"
Grid.ColumnSpan="4"
Grid.Column="1"
Grid.RowSpan="4"
VerticalAlignment="Bottom"
telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True"/>
<Border
Background="{StaticResource GridView_HierarchyBackground}"
telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True"
Grid.Column="2"
Grid.Row="2"
Grid.ColumnSpan="2"
Padding="6"
BorderBrush="{StaticResource GridView_ControlOuterBorder}"
BorderThickness="0 1"
Visibility="{Binding IsExpanded, RelativeSource={RelativeSource TemplatedParent}, Converter={StaticResource BooleanToVisibilityConverter}}">
<ContentPresenter x:Name="PART_HierarchyChildPresenter" telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True"/>
</Border>
<telerik:DetailsPresenter x:Name="PART_DetailsPresenter"
telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True"
Grid.Column="2"
Grid.ColumnSpan="2"
Grid.Row="1"
DetailsProvider="{TemplateBinding DetailsProvider}"/>
<telerik:IndentPresenter x:Name="PART_IndentPresenter"
IndentLevel="{TemplateBinding IndentLevel}"
Grid.Column="1"
Grid.RowSpan="4"
telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"/>
<Border x:Name="PART_IndicatorPresenter"
Width="25"
VerticalAlignment="Stretch"
Grid.Column="0"
Visibility="{TemplateBinding RowIndicatorVisibility}"
telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"
Grid.RowSpan="3"
BorderBrush="{StaticResource GridView_ControlOuterBorder}"
BorderThickness="0 0 1 1">
<Grid>
<Border x:Name="NavigatorIndicatorBackground"
Background="{StaticResource GridView_RowIndicatorCellBackground}"
BorderBrush="{StaticResource GridView_ControlInnerBorder}"
BorderThickness="1">
<Grid x:Name="GridIndicatorPresenter">
<Grid x:Name="NavigatorIndicator" HorizontalAlignment="Center" VerticalAlignment="Center" Width="11" Height="11" Visibility="Collapsed">
<Path
Stretch="Fill"
Data="F1 M 32.0234,6.66669L 24.2923,0.0248413L 28.3697,0.0248413L 32,3.14362L 36.1492,6.70819L 32,10.2728L 28.4664,13.3085L 24.2923,13.3085L 32.0234,6.66669 Z"
Margin="0"
HorizontalAlignment="Center"
VerticalAlignment="Center"
Width="8"
Height="8"
Fill="{StaticResource GridView_NavigatorIndicatorBackground}"/>
</Grid>
<Grid x:Name="EditIndicator" HorizontalAlignment="Center" VerticalAlignment="Center" Width="16" Height="10" Visibility="Collapsed">
<Path Fill="{StaticResource GridView_EditIndicatorBackground1}" Stretch="Fill" Data="M14,9 L15,9 15,10 14,10 z M1,9 L2,9 2,10 1,10 z M15,8 L16,8 16,9 15,9 z M0,8 L1,8 1,9 0,9 z M15,1 L16,1 16,2 15,2 z M0,1 L1,1 1,2 0,2 z M14,0 L15,0 15,1 14,1 z M1,0 L2,0 2,1 1,1 z"/>
<Path
Fill="{StaticResource GridView_EditIndicatorBackground2}"
Stretch="Fill"
Margin="1"
Data="M0.99999994,6.9999995 L2,6.9999995 3,6.9999995 4,6.9999995 5,6.9999995 6,6.9999995 7,6.9999995 8,6.9999995 9,6.9999995 10,6.9999995 11,6.9999995 12,6.9999995 13,6.9999995 13,7.9999995 12,7.9999995 11,7.9999995 10,7.9999995 9,7.9999995 8,7.9999995 7,7.9999995 6,7.9999995 5,7.9999995 4,7.9999995 3,7.9999995 2,7.9999995 0.99999994,7.9999995 z M13,0.99999994 L14,0.99999994 14,1.9999999 14,2.9999995 14,3.9999995 14,4.9999995 14,5.9999995 14,6.9999995 13,6.9999995 13,5.9999995 13,4.9999995 13,3.9999995 13,2.9999995 13,1.9999999 z M0,0.99999994 L0.99999994,0.99999994 0.99999994,1.9999999 0.99999994,2.9999995 0.99999994,3.9999995 0.99999994,4.9999995 0.99999994,5.9999995 0.99999994,6.9999995 0,6.9999995 0,5.9999995 0,4.9999995 0,3.9999995 0,2.9999995 0,1.9999999 z M11,0 L12,0 13,0 13,0.99999994 12,0.99999994 11,0.99999994 10,0.99999994 9,0.99999994 8,0.99999994 7,0.99999994 6,0.99999994 5,0.99999994 4,0.99999994 3,0.99999994 2,0.99999994 0.99999994,0.99999994 0.99999994,2.3841858E-07 2,2.3841858E-07 3,2.3841858E-07 4,2.3841858E-07 5,2.3841858E-07 6,2.3841858E-07 7,2.3841858E-07 8,2.3841858E-07 9,2.3841858E-07 10,2.3841858E-07 z"/>
<Path Fill="{StaticResource GridView_EditIndicatorBackground3}" Stretch="Fill" Data="M2,9 L3,9 4,9 5,9 6,9 7,9 8,9 9,9 10,9 11,9 12,9 13,9 14,9 14,10 13,10 12,10 11,10 10,10 9,10 8,10 7,10 6,10 5,10 4,10 3,10 2,10 z M14,8 L15,8 15,9 14,9 z M1,8 L2,8 2,9 1,9 z M15,2 L16,2 16,3 16,4 16,5 16,6 16,7 16,8 15,8 15,7 15,6 15,5 15,4 15,3 z M3,2 L4,2 5,2 6,2 6,3 5,3 5,4 5,5 5,6 5,7 6,7 6,8 5,8 4,8 3,8 3,7 4,7 4,6 4,5 4,4 4,3 3,3 z M0,2 L1,2 1,3 1,4 1,5 1,6 1,7 1,8 0,8 0,7 0,6 0,5 0,4 0,3 z M14,1 L15,1 15,2 14,2 z M1,1 L2,1 2,2 1,2 z M2,0 L3,0 4,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 13,0 14,0 14,1 13,1 12,1 11,1 10,1 9,1 8,1 7,1 6,1 5,1 4,1 3,1 2,1 z"/>
<Path
Fill="{StaticResource GridView_EditIndicatorBackground4}"
Stretch="Fill"
Margin="2"
Data="M4,0 L5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 12,1 12,2 12,3 12,4 12,5.0000001 12,6 11,6 10,6 9,6 8,6 7,6 6,6 5,6 4,6 4,5.0000001 3,5.0000001 3,4 3,3 3,2 3,1 4,1 z M0,0 L1,0 1,1 2,1 2,2 2,3 2,4 2,5.0000001 1,5.0000001 1,6 0,6 0,5.0000001 0,4 0,3 0,2 0,1 z"/>
</Grid>
<Grid x:Name="InvalidEditableIndicator" Visibility="Collapsed" Background="Transparent">
<Grid HorizontalAlignment="Center" VerticalAlignment="Center" Width="16" Height="10">
<Path Fill="{StaticResource GridView_InvalidEditIndicatorBackground1}" Stretch="Fill" Data="M14,9 L15,9 15,10 14,10 z M1,9 L2,9 2,10 1,10 z M15,8 L16,8 16,9 15,9 z M0,8 L1,8 1,9 0,9 z M15,1 L16,1 16,2 15,2 z M0,1 L1,1 1,2 0,2 z M14,0 L15,0 15,1 14,1 z M1,0 L2,0 2,1 1,1 z"/>
<Path
Fill="{StaticResource GridView_InvalidEditIndicatorBackground2}"
Stretch="Fill"
Margin="1"
Data="M0.99999994,6.9999995 L2,6.9999995 3,6.9999995 4,6.9999995 5,6.9999995 6,6.9999995 7,6.9999995 8,6.9999995 9,6.9999995 10,6.9999995 11,6.9999995 12,6.9999995 13,6.9999995 13,7.9999995 12,7.9999995 11,7.9999995 10,7.9999995 9,7.9999995 8,7.9999995 7,7.9999995 6,7.9999995 5,7.9999995 4,7.9999995 3,7.9999995 2,7.9999995 0.99999994,7.9999995 z M13,0.99999994 L14,0.99999994 14,1.9999999 14,2.9999995 14,3.9999995 14,4.9999995 14,5.9999995 14,6.9999995 13,6.9999995 13,5.9999995 13,4.9999995 13,3.9999995 13,2.9999995 13,1.9999999 z M0,0.99999994 L0.99999994,0.99999994 0.99999994,1.9999999 0.99999994,2.9999995 0.99999994,3.9999995 0.99999994,4.9999995 0.99999994,5.9999995 0.99999994,6.9999995 0,6.9999995 0,5.9999995 0,4.9999995 0,3.9999995 0,2.9999995 0,1.9999999 z M11,0 L12,0 13,0 13,0.99999994 12,0.99999994 11,0.99999994 10,0.99999994 9,0.99999994 8,0.99999994 7,0.99999994 6,0.99999994 5,0.99999994 4,0.99999994 3,0.99999994 2,0.99999994 0.99999994,0.99999994 0.99999994,2.3841858E-07 2,2.3841858E-07 3,2.3841858E-07 4,2.3841858E-07 5,2.3841858E-07 6,2.3841858E-07 7,2.3841858E-07 8,2.3841858E-07 9,2.3841858E-07 10,2.3841858E-07 z"/>
<Path Fill="{StaticResource GridView_InvalidEditIndicatorBackground3}" Stretch="Fill" Data="M2,9 L3,9 4,9 5,9 6,9 7,9 8,9 9,9 10,9 11,9 12,9 13,9 14,9 14,10 13,10 12,10 11,10 10,10 9,10 8,10 7,10 6,10 5,10 4,10 3,10 2,10 z M14,8 L15,8 15,9 14,9 z M1,8 L2,8 2,9 1,9 z M15,2 L16,2 16,3 16,4 16,5 16,6 16,7 16,8 15,8 15,7 15,6 15,5 15,4 15,3 z M3,2 L4,2 5,2 6,2 6,3 5,3 5,4 5,5 5,6 5,7 6,7 6,8 5,8 4,8 3,8 3,7 4,7 4,6 4,5 4,4 4,3 3,3 z M0,2 L1,2 1,3 1,4 1,5 1,6 1,7 1,8 0,8 0,7 0,6 0,5 0,4 0,3 z M14,1 L15,1 15,2 14,2 z M1,1 L2,1 2,2 1,2 z M2,0 L3,0 4,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 13,0 14,0 14,1 13,1 12,1 11,1 10,1 9,1 8,1 7,1 6,1 5,1 4,1 3,1 2,1 z"/>
<Path
Fill="{StaticResource GridView_InvalidEditIndicatorBackground4}"
Stretch="Fill"
Margin="2"
Data="M4,0 L5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 12,1 12,2 12,3 12,4 12,5.0000001 12,6 11,6 10,6 9,6 8,6 7,6 6,6 5,6 4,6 4,5.0000001 3,5.0000001 3,4 3,3 3,2 3,1 4,1 z M0,0 L1,0 1,1 2,1 2,2 2,3 2,4 2,5.0000001 1,5.0000001 1,6 0,6 0,5.0000001 0,4 0,3 0,2 0,1 z"/>
</Grid>
<ToolTipService.ToolTip>
<ToolTip Placement="Bottom" Content="{TemplateBinding Errors}" Template="{StaticResource GridViewRow_ValidationToolTipTemplate}"/>
</ToolTipService.ToolTip>
</Grid>
<Grid x:Name="ErrorIndicator" HorizontalAlignment="Center" VerticalAlignment="Center" Width="16" Height="16" Visibility="Collapsed">
<Path
Fill="{StaticResource GridView_ErrorIndicatorBackground1}"
Stretch="Fill"
Margin="1"
Data="M3,12.999999 L4,12.999999 5,12.999999 6,12.999999 7,12.999999 8,12.999999 9,12.999999 10,12.999999 11,12.999999 11,13.999999 10,13.999999 9,13.999999 8,13.999999 7,13.999999 6,13.999999 5,13.999999 4,13.999999 3,13.999999 z M11,11.999999 L12,11.999999 12,12.999999 11,12.999999 z M2.0000001,11.999999 L3,11.999999 3,12.999999 2.0000001,12.999999 z M12,10.999999 L13,10.999999 13,11.999999 12,11.999999 z M1,10.999999 L2.0000001,10.999999 2.0000001,11.999999 1,11.999999 z M13,2.9999992 L14,2.9999992 14,3.9999992 14,4.9999992 14,5.9999992 14,6.9999992 14,7.9999992 14,8.9999992 14,9.9999992 14,10.999999 13,10.999999 13,9.9999992 13,8.9999992 13,7.9999992 13,6.9999992 13,5.9999992 13,4.9999992 13,3.9999992 z M0,2.9999992 L1,2.9999992 1,3.9999992 1,4.9999992 1,5.9999992 1,6.9999992 1,7.9999992 1,8.9999992 1,9.9999992 1,10.999999 0,10.999999 0,9.9999992 0,8.9999992 0,7.9999992 0,6.9999992 0,5.9999992 0,4.9999992 0,3.9999992 z M12,1.9999999 L13,1.9999999 13,2.9999992 12,2.9999992 z M1,1.9999999 L2.0000001,1.9999999 2.0000001,2.9999992 1,2.9999992 z M11,0.99999994 L12,0.99999994 12,1.9999999 11,1.9999999 z M2.0000001,0.99999994 L2.9999998,0.99999994 2.9999998,1.9999999 2.0000001,1.9999999 z M2.9999998,0 L3.9999998,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 11,0.99999994 10,0.99999994 9,0.99999994 8,0.99999994 7,0.99999994 6,0.99999994 5,0.99999994 3.9999998,0.99999994 2.9999998,0.99999994 z"/>
<Path
Fill="{StaticResource GridView_ErrorIndicatorBackground2}"
Stretch="Fill"
Margin="7 3"
Data="M1.4901161E-07,8 L1.0000001,8 2.0000002,8 2.0000002,9 2.0000002,10 1.0000003,10 1.0000003,9 1.0000001,10 1.4901161E-07,10 1.4901161E-07,9 z M1.4901161E-07,0 L1.0000001,0 2.0000002,0 2.0000002,1 2.0000002,2 2.0000002,3 2.0000002,4.0000001 2.0000002,5 2.0000002,5.9999999 2.0000002,7 1.0000001,7 1.4901161E-07,7 1.4901161E-07,5.9999999 1.4901161E-07,5 1.4901161E-07,4.0000001 1.4901161E-07,3 1.4901161E-07,2 0,1 z"/>
<Path Fill="{StaticResource GridView_ErrorIndicatorBackground3}" Stretch="Fill" Data="M4,15 L5,15 6,15 7,15 8,15 9,15 10,15 11,15 12,15 12,16 11,16 10,16 9,16 8,16 7,16 6,16 5,16 4,16 z M12,14 L13,14 13,15 12,15 z M3,14 L4,14 4,15 3,15 z M13,13 L14,13 14,14 13,14 z M2,13 L3,13 3,14 2,14 z M14,12 L15,12 15,13 14,13 z M1,12 L2,12 2,13 1,13 z M7,11 L7,12 7,13 8,13 9,13 9,12 9,11 8,11 z M15,4 L16,4 16,5 16,6 16,7 16,8 16,9 16,10 16,11 16,12 15,12 15,11 15,10 15,9 15,8 15,7 15,6 15,5 z M0,4 L1,4 1,5 1,6 1,7 1,8 1,9 1,10 1,11 1,12 0,12 0,11 0,10 0,9 0,8 0,7 0,6 0,5 z M14,3 L15,3 15,4 14,4 z M7,3 L7,4 7,5 7,6 7,7 7,8 7,9 7,10 8,10 9,10 9,9 9,8 9,7 9,6 9,5 9,4 9,3 8,3 z M1,3 L2,3 2,4 1,4 z M13,2 L14,2 14,3 13,3 z M4,2 L5,2 6,2 7,2 8,2 9,2 10,2 11,2 12,2 12,3 13,3 13,4 14,4 14,5 14,6 14,7 14,8 14,9 14,10 14,11 14,12 13,12 13,13 12,13 12,14 11,14 10,14 9,14 8,14 7,14 6,14 5,14 4,14 4,13 3,13 3,12 2,12 2,11 2,10 2,9 2,8 2,7 2,6 2,5 2,4 3,4 3,3 4,3 z M2,2 L3,2 3,3 2,3 z M12,1 L13,1 13,2 12,2 z M3,1 L4,1 4,2 3,2 z M4,0 L5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 12,1 11,1 10,1 9,1 8,1 7,1 6,1 5,1 4,1 z"/>
<ToolTipService.ToolTip>
<ToolTip x:Name="validationTooltip" Placement="Bottom" Content="{TemplateBinding Errors}" Template="{StaticResource GridViewRow_ValidationToolTipTemplate}"/>
</ToolTipService.ToolTip>
</Grid>
<Thumb x:Name="PART_RowResizer" Style="{StaticResource RowGripperStyle}"/>
</Grid>
</Border>
<telerik:GridViewPinButton x:Name="PinnedRowPresenter"
IsPinned="{Binding IsPinned, RelativeSource={RelativeSource TemplatedParent}}"
Background="{StaticResource GridView_RowIndicatorCellBackground}"
IsBackgroundVisible="True"
Visibility="Collapsed"/>
</Grid>
</Border>
</telerik:SelectiveScrollingGrid>
</Border>
<ControlTemplate.Triggers>
<MultiDataTrigger>
<MultiDataTrigger.Conditions>
<Condition Binding="{Binding IsEnabled, ElementName=PinnedRowPresenter}" Value="True"/>
<Condition Binding="{Binding IsMouseOver, ElementName=PART_IndicatorPresenter}" Value="True"/>
</MultiDataTrigger.Conditions>
<Setter TargetName="GridIndicatorPresenter" Property="Visibility" Value="Collapsed"/>
<Setter TargetName="PinnedRowPresenter" Property="Visibility" Value="Visible"/>
</MultiDataTrigger>
<MultiDataTrigger>
<MultiDataTrigger.Conditions>
<Condition Binding="{Binding IsPinned, RelativeSource={RelativeSource Self}}" Value="True"/>
<Condition Binding="{Binding IsEnabled, ElementName=PinnedRowPresenter}" Value="True"/>
</MultiDataTrigger.Conditions>
<Setter TargetName="GridIndicatorPresenter" Property="Visibility" Value="Collapsed"/>
<Setter TargetName="PinnedRowPresenter" Property="Visibility" Value="Visible"/>
</MultiDataTrigger>
</ControlTemplate.Triggers>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
</ResourceDictionary>
</Application.Resources>If this requirement needs to be applied only to specific RadGridView instances, set an x:Key for the above global Style and then set it to the RowStyle property of the desired RadGridView instances.
The produced result is as follows:
Regarding the PART_RowBorder question, to remove it, you could set the HorizontalGridLinesBrush property of RadGridView to Transparent.
<telerik:RadGridView ItemsSource="{Binding MyCollection
}" HorizontalGridLinesBrush="Transparent"/>The produced result is as follows:
With this being said, I have attached a sample project for you to test. It will require the NoXaml version of our assemblies to be added and the Office_Black theme to be applied, in order to test it.
Regards,
Stenly
Progress Telerik
Love the Telerik and Kendo UI products and believe more people should try them? Invite a fellow developer to become a Progress customer and each of you can get a $50 Amazon gift voucher.
