PropertyGrid

PropertyGrid Overview

A PropertyGrid is a user interface (UI) component commonly used in software applications to display and edit the properties and attributes of objects, typically within a development or design environment. It provides a structured and organized way to view and modify the properties, making it valuable for developers, designers, and users.

Live Demo

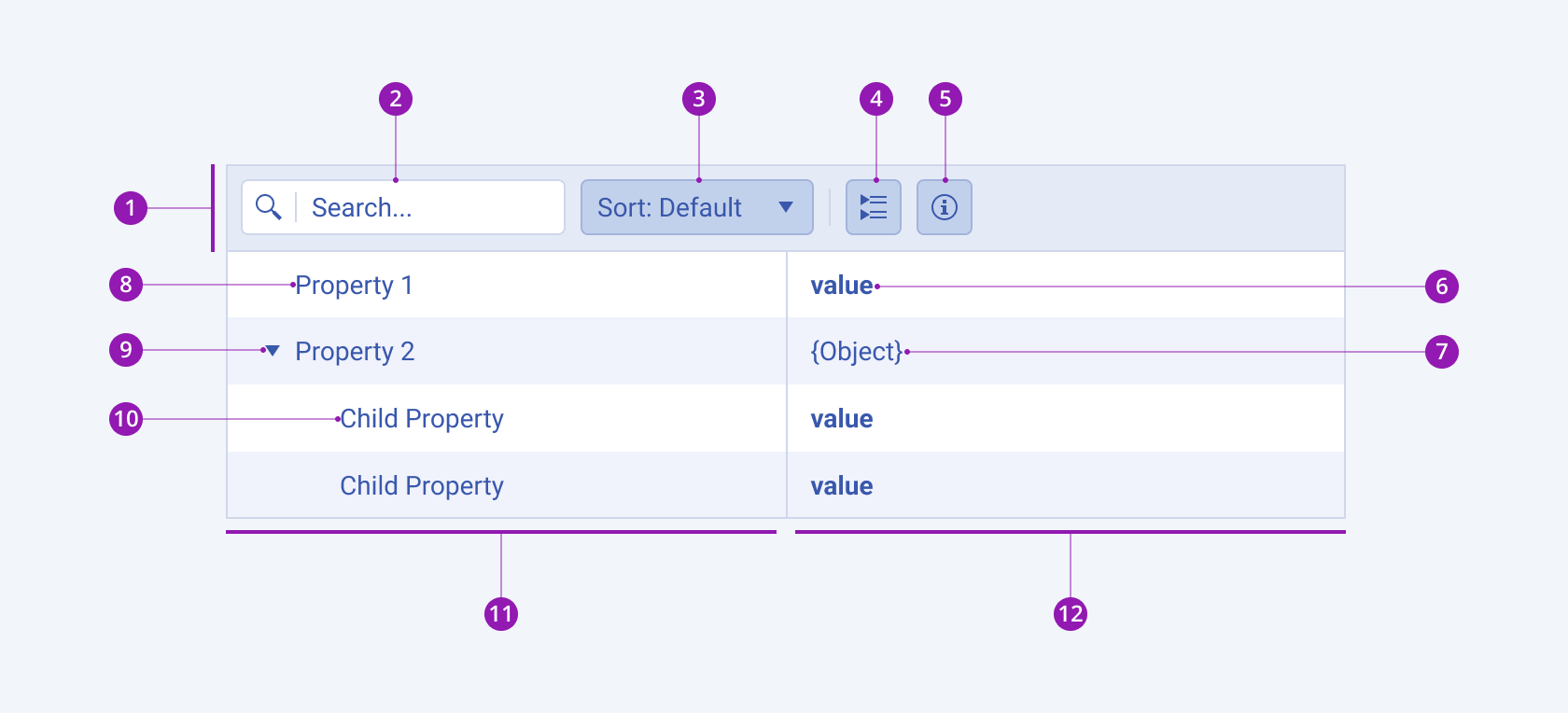

Anatomy

The anatomy of the PropertyGrid summarizes the elements of the component:

1. Toolbar
2. Search box
3. Sort button
4. Group categories button
5. Details button
6. Editable value
7. Read-only value
8. Property name
9. Group property name
10. Child property name
11. Property column
12. Value column

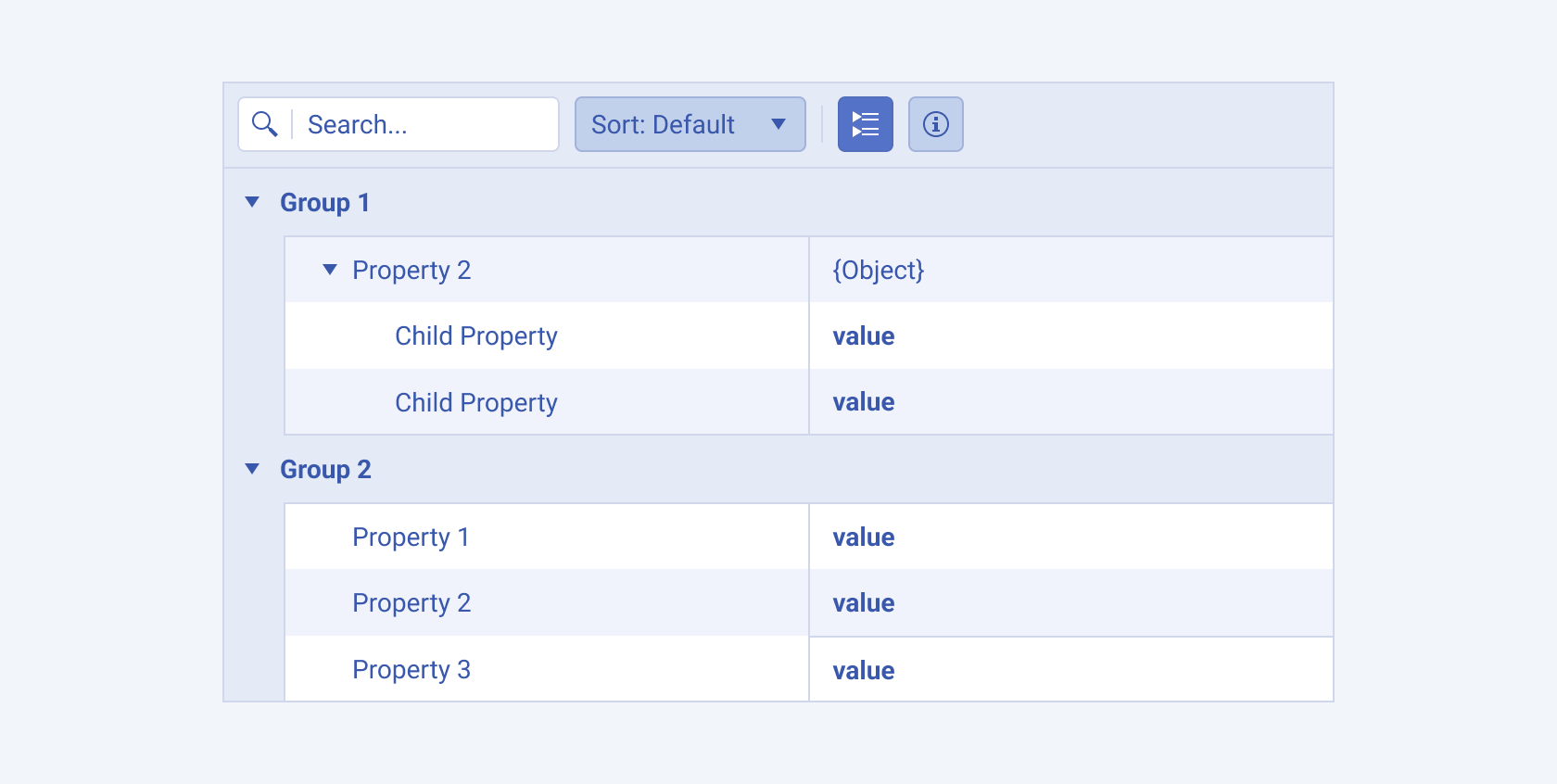

Grouped Categories View

The Telerik and Kendo UI PropertyGrid can display categories in groups for better visual separation between properties and property groups.

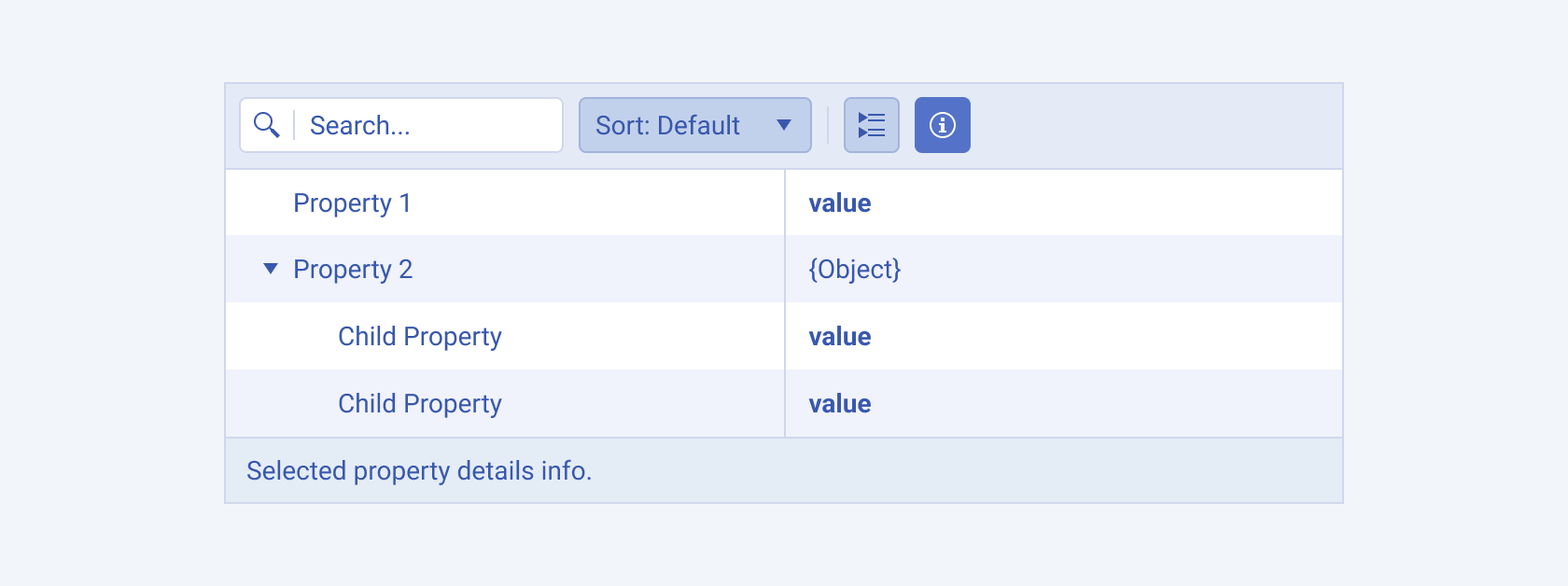

Property Details

The PropertyGrid features an option that displays more details about the selected property.

Framework-Specific Documentation

For specific information about the component, refer to its official product documentation:

Kendo UI for jQuery PropertyGridFind more information about the Kendo UI for jQuery PropertyGrid in the official product documentation of the component.

Telerik UI for ASP.NET Core ButtonFind more information about the Telerik UI for ASP.NET Core Button component.

Telerik UI for ASP.NET MVC ButtonFind more information about the Telerik UI for ASP.NET MVC Button component.
